    Computerized 3D CNC Router Machine Wtih Auto Loading And Unloading System

    Ask Lasest Price
    Brand Name : Donho
    Model Number : DHRM-1325E
    Certification : CE, ISO
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 200 Sets Per Month
    Delivery Time : 2 Weeks After Balance
    • Product Details
    • Company Profile

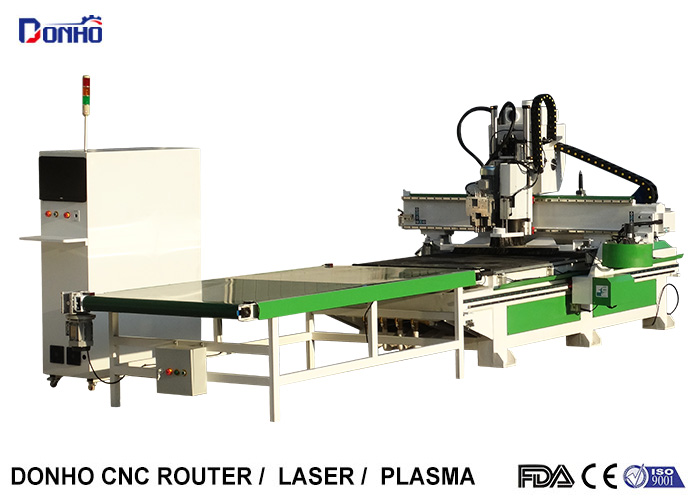

    Computerized 3D CNC Router Machine Wtih Auto Loading And Unloading System

    Auto loading VS Unloading System CNC 3D Router Machine For Increasing Working Effect


    This type CNC router has two table, could auto loading and unloading materials, could add label machine to build a one-stop system.

    Advantage:
    1. Square tube lathe bed and steel gantry make the machine body more stable and much stronger;
    2. Original high speed HSD ATC air cooling spindle makes sure to work stably for the long time;
    3. Japan Yaskawa servo motor and servo driver with Shimpo reducer which make sure high speed, accurate location and more stability;
    4. It will be high efficiency with automatic loading and unloading;
    5. It is easy to learn and operate with separate keyboard control system and master the application in a short time.

    Model

    DHRM-1325E

    Table Size1300 mm * 2500 mm * 200 mm
    Motor And DriverYaskawa servo motor and driver
    Table TypeVacuum Table with 6 Zones
    Spindle9.0 KW HSD Air Cooling Spindle
    Inverter11 KW Delta Inverter
    X,Y Axis TransmissionGermany Gear And Rack Transmission
    Z Axis TransmissionTaiwan Ball Screw Transmission
    Control SystemSyntec 20 MB Control System
    RailPTM 20mm square rail
    Body StructureHeavy duty body
    OthersUSB interface, Filter, tool sensor, etc

    Tools center CNC router has two types, installed on gantry and spindle. It could hole 8 or 12 tools with it, and decrease the tool exchange speed obviously compare with Linear ATC CNC Router. It made for complex pictures and continuous completion of all major processes of large quantities of products. It adopt the parts with the most advanced technology, high quality, could engrave higher percision work with a long working life. It’s a better choice if you need to carve draw for high end market.

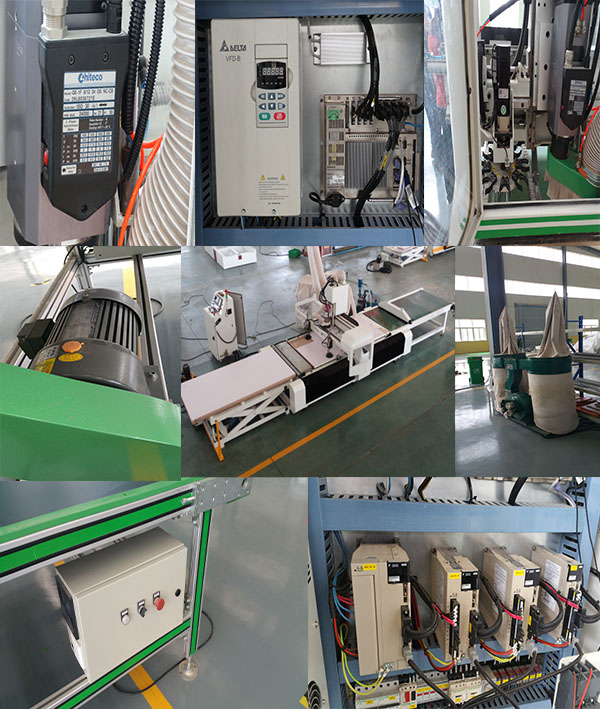

    YASKAWA Servo Motor and Driver

    Compare with stepper motor and driver, Servo motor has lots of good functions.

    Better working accuracy, no vibration phenomenon in low speed, constant torque output in higher speed, strong overload ability, more reliable and much faster responding speed. Servo motor and driver is sutable for high end CNC router for higher request.


    Syntec Control System

    Syntec control system usually adopted in high end CNC router for multi function. It could be used in ATC CNC router, single arm CNC router, auto-loading & unloading CNC router, Oscillating knife CNC router etc.

    It is afforable, good with after-sales service, and is currently the most complete domestic product line, the most potential for development of professional PC based CNC controller brand.

    The operation interface is designed according to human visual sense system, which makes people's visual sense to reach the most comfortable state. Portable hand-held remote control unit greatly facilitates tool setting, test cutting, processing and security.


    Vacuum Table

    Our vacuum table is made by aluminum and covered by double hard PVC layer. Don’t need human fix the material and absorb the material automatically. We usually adopt 6 zones vacuum table, and could make customized type according your need.
