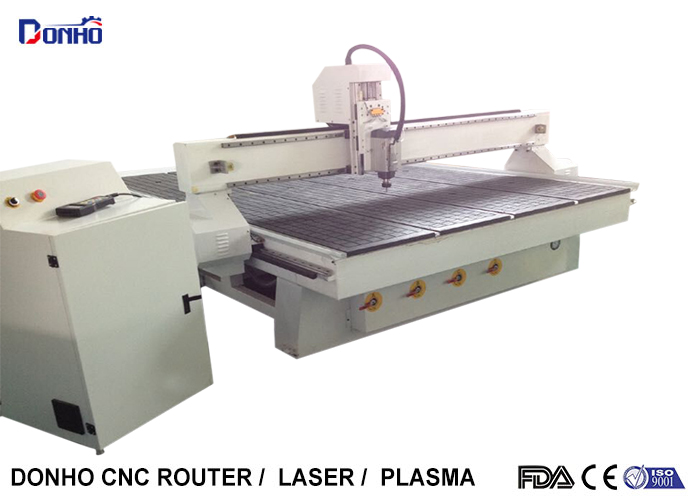

NC-studio Control System white CNC 3D Router Machine For PVC Plate
Engraving
This type CNC router machine is general type with larger table,
could handle materials size within 2000 mm * 3000 mm.
Advantage:
1. 8 mm thickness square tube lathe bed is solid structure. It's
low center of gravity could guarantee the strong stability. The
machine's body is welded with seamless steel structure, diffcult to
be deformed. The two side boards of gantry adopt steel structure;
2. Imported Germany linear square tracks, installed ball sliders in
two arrays and four rows, makes machine have better load bearing
and stable running;
3. 3KW spindle with better rigidity not only demonstrates superior
performance in woodworking application, but also propitious to
engrave and cut on copper, aluminum, iron and other metals;
4. With Germany rack and gear transport system could improve the
speed of the machine obviously;
5. Taiwan linear square rails, dual four slider, loading capacity,
smooth operation and high precision, long working life span, under
the knife precision;
6. Software compatibility and compatible with Typ3/Artcam/Castmate
/ Wentai, and other CAD / CAM design software.
Model | DHRM-2030 |
| Table Size | 2000 mm * 3000 mm * 200 mm |
| Spindle | 3.0 KW Air cooling Spindle |
| Inverter | 3.7 KW Detla Inverter |
| Control System | NC-studio Control System |
| Table | Vacuum Table with 4 zones |
| Z Axis Transmission | Taiwan Ball Screw Transmission |
| X,Y Axis Transmission | Gear And Rack Transmission |
| Rail | PTM square rails |
| Motor And Driver | Stepper hybird motor and driver |
| Body Structure | Heavy duty body |
| Others | USB interface, Filter, tool sensor, etc |
Delta Inverter
Inverter is controler of spindle, it control the start, speed and
stop of spindle. We usually adopt Taiwan Detla inverter.
Delta’s inverter combined with DC power systems, could provide a
modular UPS for AC power backup. The system can operate in economy
mode. When in normal opoeration the total installation’s energy
efficiency could be optimized automatically. In regions with AC
utility challenges, the auxiliary AC-powered infrastructure is
protected by the inverter system from AC mains fluctuations.
Further more, the inverter system offers new opportunities for
energy savings through providing backup AC power.
Vacuum Table
Our vacuum table is made by aluminum and covered by double hard PVC
layer. Don’t need human fix the material and absorb the material
automatically. This cnc router adopts 4 zones vacuum table, and
could make customized type according your need.
Vacuum table is better for plate engraving with vacuum pump.
However if you need cut your materials, you'd better choose fixture
to hold the materials. Vacuum table also have T-slot to handle
materials cutting work.
Mist Cooling system
Mist Cooling System is installed for processing soft metal
materials like copper, aluminum etc. It has two function on
spindle, controling the temperature of spindle and lubricating the
tools. It’s necessary for soft metal producing. If you need cut
metal, please order mist cooling system.
