    Wood / Acrylic Engraving C And C 3D Router Machine With Industrialized Welded Structure

    Ask Lasest Price
    Brand Name : Donho
    Model Number : DHRM-1325
    Certification : CE, ISO
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 200 Sets Per Month
    Delivery Time : 2 Weeks After Balance
    • Product Details
    • Company Profile

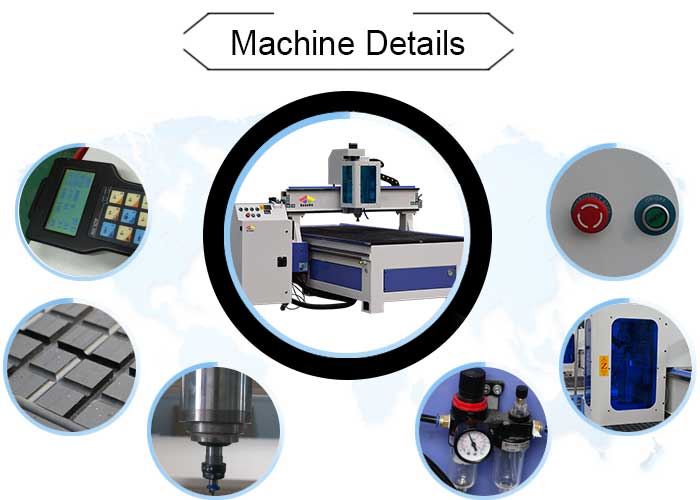

    Wood / Acrylic Engraving C And C 3D Router Machine With Industrialized Welded Structure

    Control Cabinet and Weihong Handle Operating CNC 3D Router Machine For Acrylic Engraving


    This type CNC router machine adopts economy parts, like Richauto control system, domestic spindle, stepper motor and drivers. However this machine still could guarantee the accuracy.


    Advantage:

    1. Industralized welded machine structure, quenched by dragon gate milling machineing, ensure high rigidity and high accuracy;

    2. Professional genuine controlling system, CNC Router could compatible with Tpye3, Arcam, Proe, Ug and CAP/CAM software;

    3. Z axis with imported Taiwan ball screw transimisstion and Hiwin square rail to ensure the mahcining accuracy;

    4. Y axis with dual motor driver, the drive system of large turque, could handle high load under the processing environment.


    Model

    DHRM-1325

    Table Size1300 mm * 2500 mm
    Spindle5.5 KW Spindle And other power for option
    Control SystemRichauto Control System
    Motor And DriverStepper motor and driver
    Table TypeVacuum Table and T-slot Table for option
    Inverter7.5 KW Fuling Inverter
    X,Y Axis TransmissionGear And Rack Transmission
    Z Axis TransmissionTaiwan Ball Screw Transmission
    RailPTM 20 mm square rail
    Body StructureHeavy duty body

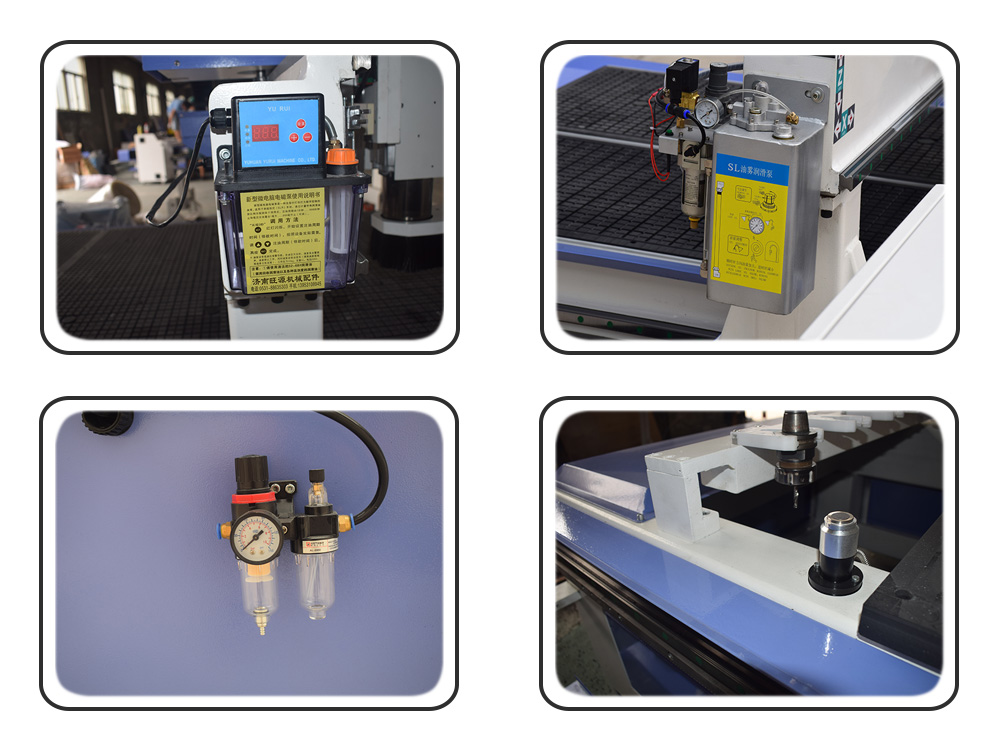

    OthersUSB interface, Filter, tool sensor, etc


    Fuling Inverter

    Inverter is controler of spindle, it control the start, speed and stop of spindle. We usually adopt Shanghai Fuling inverter.

    Fuling inverter adopts DSP all-digital control system and international leading vector control algorithm to realize high-performance and high-precision motor drive control. While making sure the product reliability and environmental adaptability, it also strengthens the customer's ease. With the design of professionalism and industry specialization, the functions are more optimized, the application is more flexible, and the performance is more stable. It can be widely used in CNC machine tools, metal machining centers, and places with high requirements for speed control accuracy, torque response speed, and low-frequency output characteristics.


    Leadshine stepper Motor and Driver

    Leadshine stepper Moter and Driver is widely adopted in Chinese CNC router, It’s cheaper and high accuracy. It won’t lose step in working, speed performance increased about 30%, improve the equipment speed heavily. Motor heat fell down 30%,prolong the life time of the motor. Vibration phenomenon significantly reduced,motor run more smoothly. Adopted the current control system technology,save power consumption.


    Weihong NK105 DSP Control System

    Weihong NK105 is widely adopted in general type cnc rotuer. It has friendly interface, easy operater, support breakpoint processing, could support Chinese, English, Polish and Vietnamese. It powerful NC software alarm could support program error, operation error, overtravel error, PLC error, IO communication error etc, could protect the machine very well.
