    Black 4 Zones Vacuum Table CNC 3D Router Machine , Wood Carving Router Machine

    Ask Lasest Price
    Brand Name : Donho
    Model Number : DHRM-1325
    Certification : CE, ISO
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 200 Sets Per Month
    Delivery Time : 2 Weeks After Balance
    • Product Details
    • Company Profile

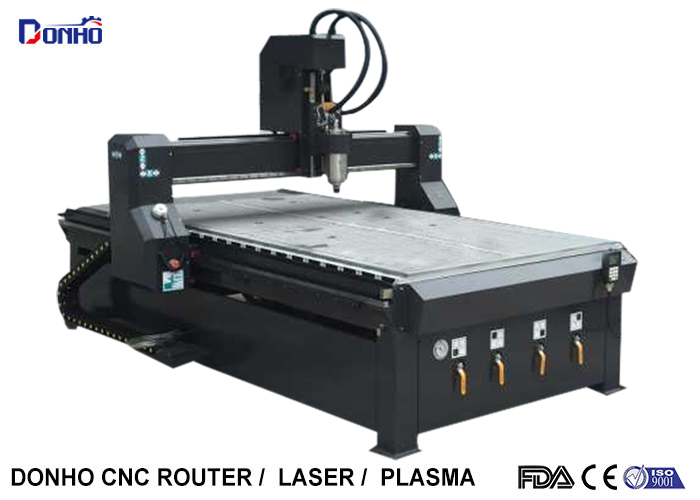

    Black 4 Zones Vacuum Table CNC 3D Router Machine , Wood Carving Router Machine

    Black 4 Zones Vacuum Table CNC 3D Router Machine For woodworking


    This CNC router is special customized black color, If you have color request, we could meet your need too.

    Advantage:

    1. 8mm thickness welded steel lathe bed, stress-relief operation, strong constructure and Never be distorted;

    2. Chinese widely adopted stepper motor and driver, don't lose step, cost performance;

    3. Germany Rack gear transmission ensures fast speed and high accuracy;

    4. Taiwan Hiwin square rails guarantee the high accuracy and heavy workload;

    5. CNC router adopted 5.5 KW air vacuum pump for vacuum table, you could also choose oil-less pump;

    6. Manu lubrication system could save oil, you could order auto lubrication for saving time;

    7. Japan OMRON limit switch, Schneider electrical components, tool sensor etc are for option when you order CNC router machine.


    Model

    DHRM-1325

    Working Area1300 mm * 2500 mm * 200 mm
    Motor And DriverStepper motor and driver
    RailHiwin 15 mm square rails
    Body StructureHeavy duty body
    TableVacuum Table with 7 zones
    Spindle6.0 KW Air cooling Spindle
    Inverter7.5 KW Detla Inverter
    Control SystemWeihong DSP Control System
    Z Axis TransmissionTaiwan Ball Screw Transmission
    X,Y Axis TransmissionGear And Rack Transmission
    OthersUSB interface, Filter, tool sensor, etc


    Spindle

    Demostic spindle have water cooling and air cooling etc two cooling types. Low price with high precision and effecienty. Four bearing in our spindle motor could make sure same precision for over 3 years. Suitable for basic type and Ball Screw type cnc router. It has ATC type too, could help you to carving complex pictures.


    How to choose Spindle Cooling type:

    ItemWater Cooling SpindleAir Cooling Spindle
    Cooling effectWith Better Cooling EffectWith Good cooling Effect
    NoisyNo NoiseAbout 70 Decibel
    PrecisionLess than 0.003 mmLess than 0.005 mm
    Working TemperatureBetter in High TemperatureBetter in Low Temperature
    InstallationWater pump, Water Pipe, Water bucketAir Pump (Fan), air pipe

    Weihong NK105 DSP Control System

    Weihong NK105 is widely adopted in general type cnc rotuer. It has friendly interface, easy operated, support breakpoint processing, could support Chinese, English, Polish and Vietnamese. It powerful NC software alarm could support program error, operation error, overtravel error, PLC error, IO communication error etc, could protect the machine very well.

    Quality guarantee:

    1) Built quality control system. We built an effect quality control system to make sure every details under the quality control, and we adjust quality control system for better effect at any time.

    2) Employee trainning. Our train all the staff to make every emloyee to know the important of quality, and help them to learn how to finish their jobs more sophisticated and more professional.

    3) Material quality guarantee. All our partners have good reputation in CNC industry. Further more, we check all the materials carefully to remove unqualified raw materials.

    4) Auxiliary precision instruments. During the production, we adopt auxiliary precision instruments to low Hhuman factor error, to incream the precision.

    5) Standardize the operation. We have a whole operating standard to make sure the production quality, and we check every details during the producing to reduce errors.

    6) Finished product testing. We test the finished machine for 48 hours to test the accuracy and stability, to make sure every machine could have perfect effect in your factories.
