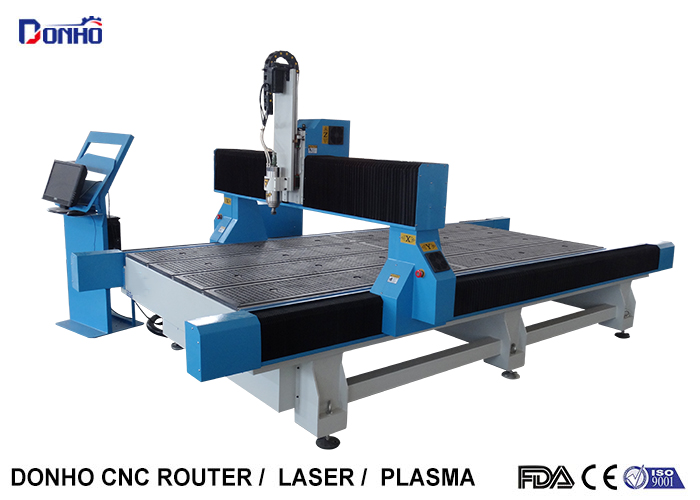

Blue CNC Router Milling Machine With Protective Cover On X, Y Axis
Rails
This type CNC milling machine is special made for blue color, you
could order the color you favorite for free.
Advantage:
1. Tool sensor system, save extra time to adjust the machine;
2. Use high speed drive motor, also servo motors for optional;
3. It achieves 2D and 3D works easily;
4. This type machine can support these functions: Drilling/milling,
engraving/carving, cutting;
5. It widely adopted for small materials working, without noise &
high-power;
6. Many gear speed regulation and control function & Curve and
linear speed independent control;
7. Water tank system on the body & water-cooled system
automatically.
Model | DHRM-1325 |
Spindle Power | 3.0 KW |
Inverter Power | 5.5 KW |
Table Type | Vacuum Table |
Control System | NC-studio Control system |
Main axle rotating speed | 0-18000rpm |
Vacuum Table
Our vacuum table is made by aluminum and covered by double hard PVC
layer. Don’t need human fix the material and absorb the material
automatically. We usually adopt 6 zones vacuum table, and could
make customized type according your need.
Hiwin Square Rail
We choose square rail for our cnc router. Bucause compare with
round rail, square rail could bear qaual force in all directions,
could ensure the accuracy and strength of the machine.
Square rail is more suitable for high-speed move and greatly reduce
the drive horsepower the machine required.
We usually adopt Hiwin rail (from Taiwan) in CNC router machine. It
well known as low price and high quality, value for money. It work
for more than 3 year without rust.
Heavy duty body
Heavy duty body are made by 15mm steel square tube and beam, adopt
welded with seamless welded structure. Annealing in high
temperature and vibrating stress relief. The body with big weight,
could keep good stability without deformation in long time working
vibration.
Leadshine hybrid servo motor
Leadshine hybrid servo motor is stepper motor add a servo moniter.
It could work like servo motor but with much lower cost. It
suitable for high accuracy request on general type CNC router.
Inverter
Inverter is controler of spindle, it control the start, speed and
stop of spindle. We usually adopt Taiwan Detla inverter and shanghai Fuling inverter.
