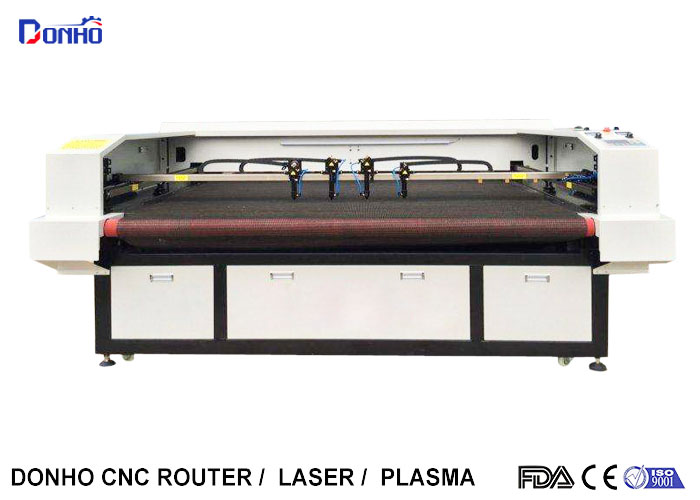

Auto Feeder Gray Four Laser Heads Fabric Laser Cutting Machine For
Multi-picture Engraving
This type co2 laser cutting equipment adopts four heads to engrave
four pictures one time, auto feeder could let machine cutting
cloths etc materials autoly.
| Model | DHCLS-1610 |
| Control System | Leetro Control system |
| Lens and Mirrors | Demostic lens and mirrors |
| Laser Power | 80W -90W RECI laser tube |
| Working Area | 1600mm * 1000mm |
| Motor and Driver | Leadshine stepper motor and driver |
| Rails | PMI square rail |
| Table Type | Auto feed table |
| Transmission | Belt transmission |
| Cooling System | Water chiller CW 3000 |
| Others | USB offline, Automatic focus, Air pump ACO-009, Dust collector 550w
,Standard tool box, Industrial, Air pump ACO-009 etc |
Features
1. Leadshine stepper motor and driver, the CM series is a high-performance, lower-cost stepper motor
made by Raytheon Smart with the latest Japanese design, the latest
technology and imported core materials; CM series waterproof
stepping motor, compared with the standard type, the rear end cover
is redesigned, the lead wire is changed to waterproof connector, a
new sealing material is added between the front and rear end caps
and the fuselage, and the motor body is comprehensive. Standard stepping motor, CM series is also equipped with double
output shaft type, with brake type, waterproof type and other
categories, which can be selected according to different
applications;
2. Auto feeder Table applicable to various soft materials with Good adsorption effect
and low reflection;
3. Inner part with optimized heat dissipation effect, rationalized placement of the
electronic parts, Ensured system stability and anti jamming
capability;
4. Welded machine body
adopts thermal quenching technology to remove stress and uses a
large precision gantry milling machine to ensure accuracy;
5. Chinese lens and mirrors anti-reflection film, high-quality processing technology, high
transmittance, stable performance;
6. Non-metal laser head, More in line with the latest design of mechanical engineering,
greatly improve the laser conversion rate, fast carving speed, safe
and durable, easy to operate;
7. Reci laser tube, 10 months accuracy, could work over 50000 hours. Good engraving
performance, can use 4mA current in the high-frequency pulse
engraving of the laser tube in pre-ionization state;
8. The Fulong belt belt is made of high quality synthetic neoprene imported from Japan
and is equipped with rubber accessories for various purposes. The
skeleton material is made of high quality glass fiber rope imported
from Japan; the toothed surface is protected by nylon 66 high
elastic cloth. The product has good dynamic performance and crack
resistance, excellent ozone performance, and also has the
characteristics of aging resistance, heat resistance and wear
resistance.The timing belt adopts toothed and toothed teeth to
transmit power, which is a new type of synchronous transmission.
Moreover, the product does not require lubrication, no slip, no
pollution, less noise; transmission efficiency of more than 98%,
speed ratio range of up to 1:10, allowable line speed of up to 50m
/ s, transmission rate from several hundred watts to several One
hundred kilowatts, also suitable for multi-axis transmission;
9. Red Point
The red spot positioning lamp adopts imported laser diode and
optical lens. Clear spot, low divergence, good collimation, small
size, strong industrial applicability;
10. Leetro DSP real-time laser cutting control system
True color screen, support customer custom boot screen, support
panel display processing graphics
Support CCD vision automatic edge finding cutting function.Network
communication is multi-connected, one computer controls multiple
devices at the same time, and the point-to-point transmission
distance is up to 100 meters.
11. Cooling machine adopted Industrial water chiller CW-3000, install easier and could
make sure better cooling system to extended working hours;
12. Automatic infrared rectify system could make machine feed the materials autoly.
