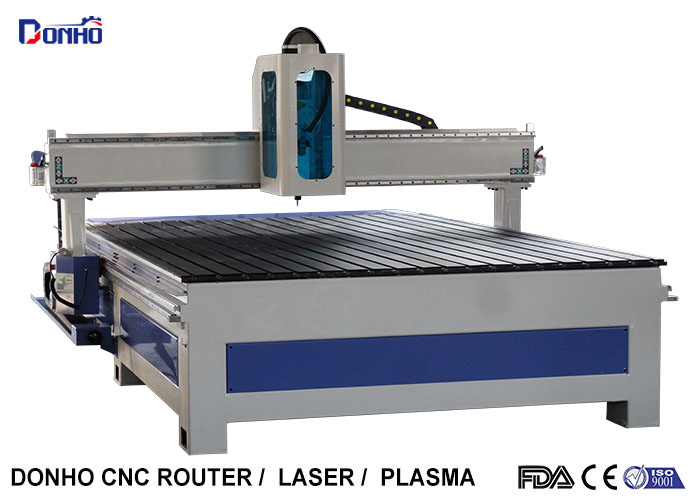

T-slot Table wooden working 3 Axis CNC Router Machine With Weihong
Nk105 Control System
This type CNC engraving machine is adopted T-slot table to fix the
materials with fixture.
Advantage:
1. The overall steel structure platform adopts heavy-duty machine
bed and double-motor driven gantry movement mode, with large
bearing capacity and stable high-speed operation;
2. The imported square linear guide rail has large bearing
capacity, high precision, stable operation and long service life;
3. The rack and pinion transmission mode can ensure the accuracy
even when the high speed is guaranteed;
4. The system automatically optimizes machining speed, idle speed
and falling speed, improves work efficiency, and protects and
extends tool life;
5. Automatic tool setting function, the surface origin of the
processed material can be measured with a single touch;
6. Unique jog (stepping) CNC function to precisely adjust the
position of the tool tip;
7. Software control automatically completes multi-level 3D
machining, allowing dynamic adjustment of machining speed and
falling speed during machining;
8. Intelligent 3D computer numerical control function, realizing
three-axis linear linkage, enabling fast and smooth
three-dimensional processing, engraving or cutting;
| Model | DHRM-2030 |
| Table Size | 2000 mm * 3000 mm * 200 mm |
| Spindle | 3.0 KW Air Cooling Spindle |
| Inverter | 3.7 KW Delta Inverter |
| Rail | Hiwin 15 mm square rail |
| Table Type | T-slot Table with PVC layer |
| Body Structure | Steel pipe welded machine holder bed |
| X,Y Axis Transmission | Helical Gear And Rack Transmission |
| Z Axis Transmission | Taiwan Ball Screw Transmission |
| Control System | DSP control system |
| Motor And Driver | 86BYGH450B Stepper motor and driver |
| Others | USB interface, Filter, tool sensor etc |
Weihong NK105 DSP Control System
Weihong NK105 is widely adopted in general type cnc rotuer. It has
friendly interface, easy operater, support breakpoint processing,
could support Chinese, English, Polish and Vietnamese. It powerful
NC software alarm could support program error, operation error,
overtravel error, PLC error, IO communication error etc, could
protect the machine very well.
Square welded Pipe Body
Sqaure welded Pipe Body are made by 15 mm steel square tube and
beam, adopt welded with seamless welded structure. Annealing in
high temperature and vibrating stress relief. The body with big
weight, could keep good stability without deformation in long time
working vibration.
Leadshine stepper Motor and Driver 86BYGH450B
Leadshine stepper Moter and Driver is widely adopted in Chinese CNC
router, It’s cheaper and high accuracy. It won’t lose step in
working, speed performance increased about 30%, improve the
equipment speed heavily. Motor heat fell down 30%,prolong the life
time of the motor. Vibration phenomenon significantly reduced,motor
run more smoothly. Adopted the current control system
technology,save power consumption.
T-slot Table
T-slot table usually adopted in mini CNC router. Table is made from
aluminum and Steel plate. The Plate could be suctioned on a vacuum
table. The T-slot table covered with double PVC layer to protect
your materials and lower the nosiy. This desige could make sure to
mount vices, mount vices, clamps. Don’t need connect with the
vacuum pump, install easily.
Inverter
Inverter is controler of spindle, it control the start, speed and
stop of spindle. We usually adopt Taiwan Detla inverter.
Delta’s inverter combined with DC power systems, could provide a
modular UPS for AC power backup. The system can operate in economy
mode. When in normal opoeration the total installation’s energy
efficiency could be optimized automatically. In regions with AC
utility challenges, the auxiliary AC-powered infrastructure is
protected by the inverter system from AC mains fluctuations.
Further more, the inverter system offers new opportunities for
energy savings through providing backup AC power.
HQD spindle
HQD spindle have water cooling and air cooling etc two cooling
types. Low price with high precision and effecienty. Four bearing
in our spindle motor could make sure same precision for over 3
years. Suitable for basic type and Ball Screw type cnc router. It
has ATC type too, could help you to carving complex pictures.
