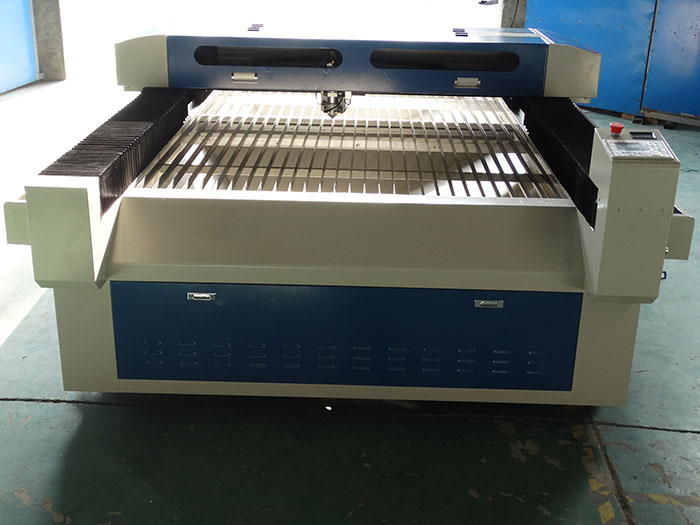

Live Following System 150W RECI Laser Tube Laser Metal Cutting
Machine For Metal Engraving
This type co2 laser cutting equipment adopts 150W RECI sealed Co2
laser tube to cut metal & non-metal materials.
| Model | DHCLS-1325 |
| Working Area | 1300mm * 2500mm |
| Living focus system | RD live focus system |
| Laser Power | 130W-150W sealed laser tube |
| Lens and Mirrors | American Ⅱ-Ⅵ lens and mirrors |
| Control System | Ruida Control system |
| Motor and Driver | Leadshine stepper motor and driver |
| Table Type | Blade table |
| Cooling System | Water chiller CW 6000 |
| Rails | PMI square rail |
| Transmission | Belt transmission |
| Others | USB offline, Automatic focus, Air pump ACO-009, Dust collector 550w
,Standard tool box etc |
Features
1. 130W-150W Reci laser tube, has good engraving performance, can use 4mA current in the
high-frequency pulse engraving of the laser tube in pre-ionization
state
2. The RuiDa control system is the latest generation of laser engraving/cutting control system
developed by Ruida Technology. The control system has better
hardware stability and better resistance to high voltage and
antistatic interference. Can preview the file graphics saved in the
memory on the panel, the speed of the screen, the domestic
manufacturers no one can;The processing parameters (such as speed,
power, etc.) of each layer can be directly modified on the
operation panel, and the modified layer parameters can be
automatically saved for later use (this function cannot be
implemented by other manufacturers) ;
3. Inner part with optimized heat dissipation effect, rationalized placement of the
electronic parts, Ensured system stability and anti jamming
capability;
4. Red Point
The red spot positioning lamp adopts imported laser diode and
optical lens. Clear spot, low divergence, good collimation, small
size, strong industrial applicability;
5. American Ⅱ-Ⅵ lens and mirrors The light transmittance is up to 99.5%, the coating is uniform and
resistant to wiping, the color is light and transparent, and the
reflectivity is high. Professional diffractive and
aberration-optimized design for smaller spotlights and higher
power;
6. RD untouched following system 4.3-inch full touch screen, dedicated servo or stepper motor
interface, USB interface, analog feedback detection sensor; LFS
height control system series products adopt advanced hardware
platform, adopt all-digital control technology, advanced
closed-loop control algorithm;

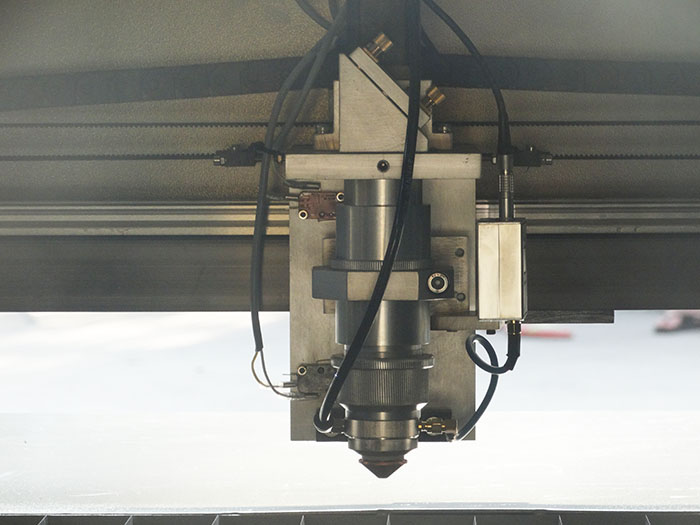

7. Laser head, More in line with the latest design of mechanical engineering,
greatly improve the laser conversion rate, fast carving speed, safe
and durable, easy to operate;
8. Leadshine stepper motor and driver, the CM series is a high-performance, lower-cost stepper motor
made by Raytheon Smart with the latest Japanese design, the latest
technology and imported core materials; CM series waterproof
stepping motor, compared with the standard type, the rear end cover
is redesigned, the lead wire is changed to waterproof connector, a
new sealing material is added between the front and rear end caps
and the fuselage, and the motor body is comprehensive. Standard stepping motor, CM series is also equipped with double
output shaft type, with brake type, waterproof type and other
categories, which can be selected according to different
applications;
9. The blade table is suitable for hard materials engraving, it could bear high weight
materials, made by stainless steel table with the bottom 15mm;

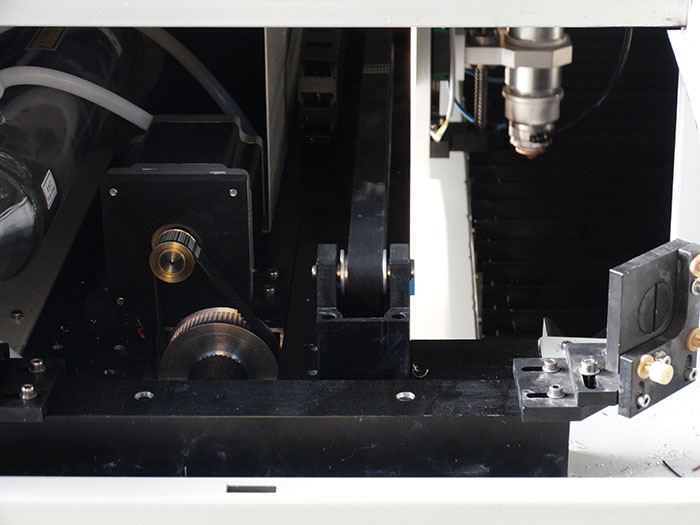

10. The Fulong belt belt is made of high quality synthetic neoprene imported from Japan
and is equipped with rubber accessories for various purposes. The
skeleton material is made of high quality glass fiber rope imported
from Japan; the toothed surface is protected by nylon 66 high
elastic cloth. The product has good dynamic performance and crack
resistance, excellent ozone performance, and also has the
characteristics of aging resistance, heat resistance and wear
resistance.The timing belt adopts toothed and toothed teeth to
transmit power, which is a new type of synchronous transmission.
Moreover, the product does not require lubrication, no slip, no
pollution, less noise; transmission efficiency of more than 98%,
speed ratio range of up to 1:10, allowable line speed of up to 50m
/ s, transmission rate from several hundred watts to several One
hundred kilowatts, also suitable for multi-axis transmission;
11. Welded machine body adopts thermal quenching technology to remove stress and uses a
large precision gantry milling machine to ensure accuracy;
12. Cooling machine adopted Industrial water chiller CW-6000, install easier and could
make sure better cooling system to extended working hours.
