Honey Table Reci Laser Tube Co2 Laser Engraving Machine For Fabric
Engraving
This type co2 laser engraving machine is made for engraving acrylic
and MDF etc non metal materials, it has 600mm * 900mm, 1300mm *
900mm, 1300mm * 2500mm etc standard type table for multi need.
| Model | DHCL-1390 |
| Laser Power | 100W-130W RECI laser tube |
| Table Type | Honey table |
| Working Area | 1300mm * 900mm |
| Lens and Mirrors | Singapore Wavelength lens and mirrors |
| Control System | Leetro Control system |
| Transmission | Belt transmission |
| Motor and Driver | Leadshine stepper motor and driver |
| Rails | PMI square rail |
| Others | USB offline, Red point, Industrial water chiller CW 3000, Air pump
ACO-009 etc |
Features

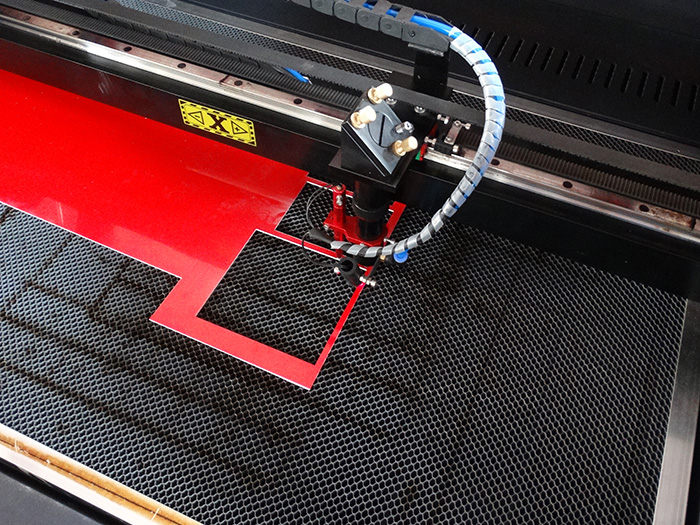

1. Honey table
Honey table is made for engraving soft materials like fabric and
leather etc. Honey table could increase friction so that the
material is fixed on the table instead of using a fixture;
2. Red Point
The red spot positioning lamp adopts imported laser diode and
optical lens. Clear spot, low divergence, good collimation, small
size, strong industrial applicability
3. Leetro control system
Leetro control system adopts true color screen, support customer
custom boot screen, support panel display processing graphics;
Support CCD vision automatic edge finding cutting function;
4. Reci laser tube, has good engraving performance, can use 4mA current in the
high-frequency pulse engraving of the laser tube in pre-ionization
state;
5. Inner part with optimized heat dissipation effect, rationalized placement of the
electronic parts, Ensured system stability and anti jamming
capability;
6. Leadshine stepper motor and driver, the CM series is a high-performance, lower-cost stepper motor
made by Raytheon Smart with the latest Japanese design, the latest
technology and imported core materials;
7. .Non-metal laser head, More in line with the latest design of mechanical engineering,
greatly improve the laser conversion rate, fast carving speed, safe
and durable, easy to operate;
8.Singapore imported lens and mirrors anti-reflection film, high-quality processing technology, high
transmittance, stable performance;
9. Cooling machine adopted Industrial water chiller CW-3000, install easier and could
make sure better cooling system to extended working hours.
