    Industrial CO2 Laser Engraving Cutting Machine , CO2 Laser Engraver 130W-150W

    Ask Lasest Price
    Brand Name : Donho
    Model Number : DHCL-1390 S
    Certification : CE, ISO
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 200 Sets Per Month
    Delivery Time : 2 Weeks After Balance
    • Product Details
    • Company Profile

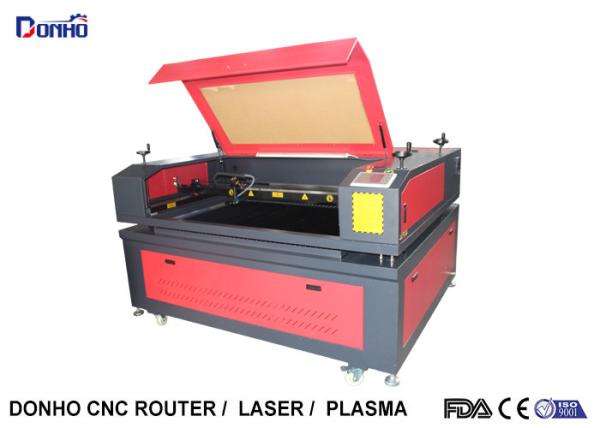

    Industrial CO2 Laser Engraving Cutting Machine , CO2 Laser Engraver 130W-150W

    Upper and lower parts of the machine bodies Co2 Laser Engraving Machine For Acrylic Engraving


    This type co2 laser engraving machine is made for easy moving through narrow door. It Easy to disassemble and install.


    ModelDHCL-1390 S
    Laser Power130W-150W RECI laser tube
    Table TypeBlade table
    Working Area1300mm * 900mm
    Control SystemLeetro Control system
    Motor and DriverLeadshine stepper motor and driver
    RailsPMI square rail
    Lens and MirrorsSingapore Wavelength lens and mirrors
    TransmissionBelt transmission
    OthersUSB offline, Red point, Industrial water chiller CW 3000, Air pump ACO-009 etc

    Features


    1. Upper and lower parts of the machine bodies

    the two parts could be separated. You could move them one part by ony part;


    2. RD laser cutting control system is the latest generation of laser engraving/cutting control system developed by Ruida Technology. The control system has better hardware stability and better resistance to high voltage and antistatic interference. The human-machine operating system based on the 3.5-inch color screen has a more friendly operation interface and more powerful functions. The controller includes more complete and better motion control functions, large-capacity file storage, more compatible dual independent adjustable laser power control interface, more compatible U disk driver, multi-channel universal / dedicated IO Control, communication with PC supports Ethernet communication and USB communication automatically;


    3. Reci laser tube, has good engraving performance, can use 4mA current in the high-frequency pulse engraving of the laser tube in pre-ionization state;


    4. Non-metal laser head, More in line with the latest design of mechanical engineering, greatly improve the laser conversion rate, fast carving speed, safe and durable, easy to operate;

    5. Leadshine stepper motor and driver, the CM series is a high-performance, lower-cost stepper motor made by Raytheon Smart with the latest Japanese design, the latest technology and imported core materials;


    6. The blade table with 1.5 cm bottom width, could bear 100 KG materials, fit for hard materials;


    7. Inner part with optimized heat dissipation effect, rationalized placement of the electronic parts, Ensured system stability and anti jamming capability;


    8. Singapore imported lens and mirrors anti-reflection film, high-quality processing technology, high transmittance, stable performance;


    9. Cooling machine adopted Industrial water chiller CW-3000, install easier and could make sure better cooling system to extended working hours
