Blue Ruida Control System Co2 Laser Engraving Machine For Wood
Cutting
This type co2 laser engraving machine is adopts RD control system
to make sure the operating speed and cutting accuracy.
| Model | DHCL-1390 |
| Table Type | Blade table |
| Motor and Driver | Leadshine stepper motor and driver |
| Laser Power | 90W-100W RECI laser tube |
| Working Area | 1300mm * 900mm |
| Control System | Leetro Control system |
| Lens and Mirrors | Singapore Wavelength lens and mirrors |
| Rails | PMI square rail |
| Transmission | Belt transmission |
| Cooling System | Water chiller CW 3000 |
| Others | USB offline, Red point, Industrial, Air pump ACO-009 etc |
Features
1. The nest table is made by alunium, fit for cutting soft materials, like paper,
leather, cloth etc;
2. Red Point
The red spot positioning lamp adopts imported laser diode and
optical lens. Clear spot, low divergence, good collimation, small
size, strong industrial applicability;
3. Welded machine body
adopts thermal quenching technology to remove stress and uses a
large precision gantry milling machine to ensure accuracy;
4. Singapore imported lens and mirrors anti-reflection film, high-quality processing technology, high
transmittance, stable performance;

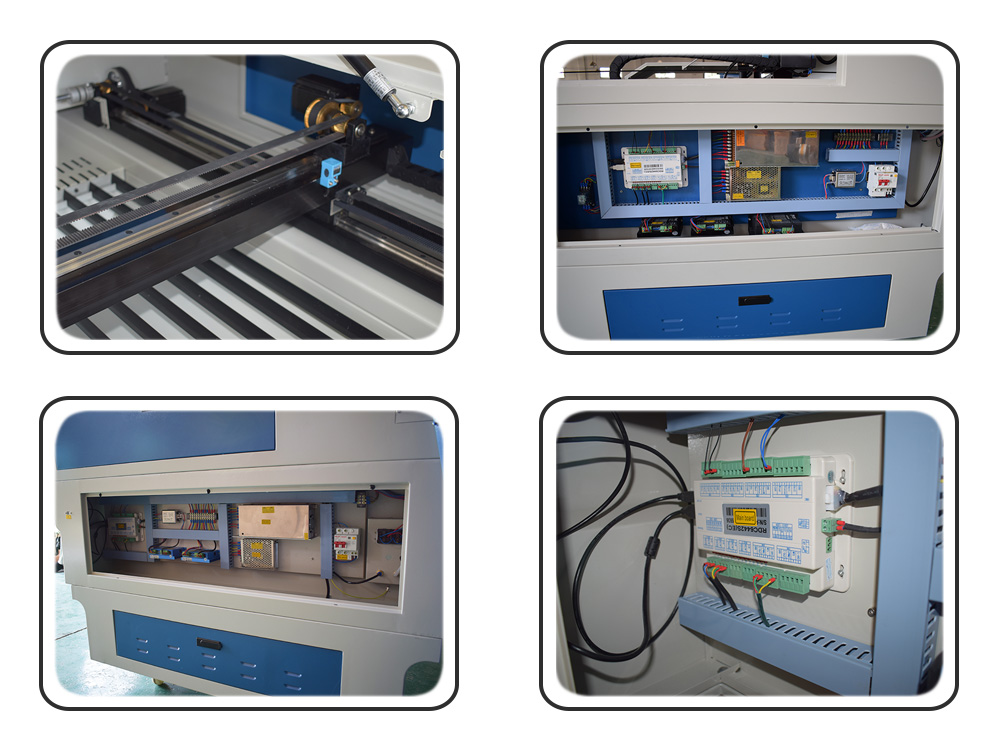

5. Inner part with optimized heat dissipation effect, rationalized placement of the
electronic parts, Ensured system stability and anti jamming
capability;
6. The RD control system is the latest generation of laser engraving/cutting control system
developed by Ruida Technology. The control system has better
hardware stability and better resistance to high voltage and
antistatic interference.True color TFT screen, can display the real
color processing graphics on the panel, and can accurately know the
coordinate position of the laser head processing on the panel; Can
preview the file graphics saved in the memory on the panel, the
speed of the screen, the domestic manufacturers no one can;
7. Non-metal laser head, More in line with the latest design of mechanical engineering,
greatly improve the laser conversion rate, fast carving speed, safe
and durable, easy to operate;
8. Cooling machine adopted Industrial water chiller CW-3000, install easier and could
make sure better cooling system to extended working hours;
9. Leadshine stepper motor and driver, the CM series is a high-performance, lower-cost stepper motor
made by Raytheon Smart with the latest Japanese design, the latest
technology and imported core materials;
10.Reci laser tube, has good engraving performance, can use 4mA current in the
high-frequency pulse engraving of the laser tube in pre-ionization
state.
