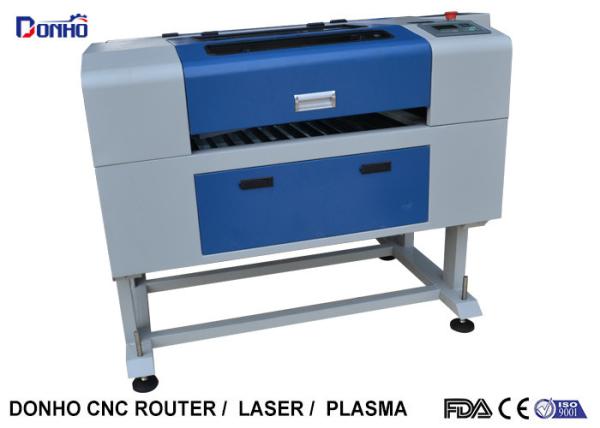

Mini Nest Table Laser Laser Engraving Machine With USD Off-line For
Wood Photo Printing
This type mini co2 laser engraving machine adopts nest table mainly
for cutting soft-materials like cloth, leather, paper etc. It's
could also cutting acrylic etc hard materials.
| Model | DHCL-1610 |
| Laser Power | 80W -90W RECI laser tube |
| Working Area | 1600mm * 1000mm |
| Control System | Ruida Control system |
| Motor and Driver | Leadshine stepper motor and driver |
| Lens and Mirrors | Singapore Wavelength lens and mirrors |
| Rails | PMI square rail |
| Table Type | Nest table |
| Transmission | Belt transmission |
| Cooling System | Water chiller CW 5200 |
| Others | USB offline, Red point, Industrial, Air pump ACO-009 etc |
Features
1. Reci laser tube, has good engraving performance, can use 4mA current in the
high-frequency pulse engraving of the laser tube in pre-ionization
state;
2. Welded machine body
adopts thermal quenching technology to remove stress and uses a
large precision gantry milling machine to ensure accuracy;
3. Singapore imported lens and mirrors anti-reflection film, high-quality processing technology, high
transmittance, stable performance;
4.RD Control system is the latest generation of laser engraving/cutting control system
developed by Ruida Technology. The controller includes more
complete and better motion control functions, large-capacity file
storage, more compatible dual independent adjustable laser power
control interface, more compatible U disk driver, multi-channel
universal / dedicated IO Control, communication with PC supports
Ethernet communication and USB communication automatically;
5. The nest table is made by alunium, fit for cutting soft materials, like paper,
leather, cloth etc. Nest table could increase friction so that the material is fixed on the table
instead of using a fixture;
6. Inner part with optimized heat dissipation effect, rationalized placement of the
electronic parts, Ensured system stability and anti jamming
capability;
7.Non-metal laser head, More in line with the latest design of mechanical engineering,
greatly improve the laser conversion rate, fast carving speed, safe
and durable, easy to operate;
8. Cooling machine adopted Industrial water chiller CW-3000, install easier and could
make sure better cooling system to extended working hours;
9. Leadshine stepper motor and driver, the CM series is a high-performance, lower-cost stepper motor
made by Raytheon Smart with the latest Japanese design, the latest
technology and imported core materials;
10.Red Point
The red spot positioning lamp adopts imported laser diode and
optical lens. Clear spot, low divergence, good collimation, small
size, strong industrial applicability.
