1600mm * 1000mm Singapore Lens And Mirriors Laser Laser Engraving
Machine With USD Off-line

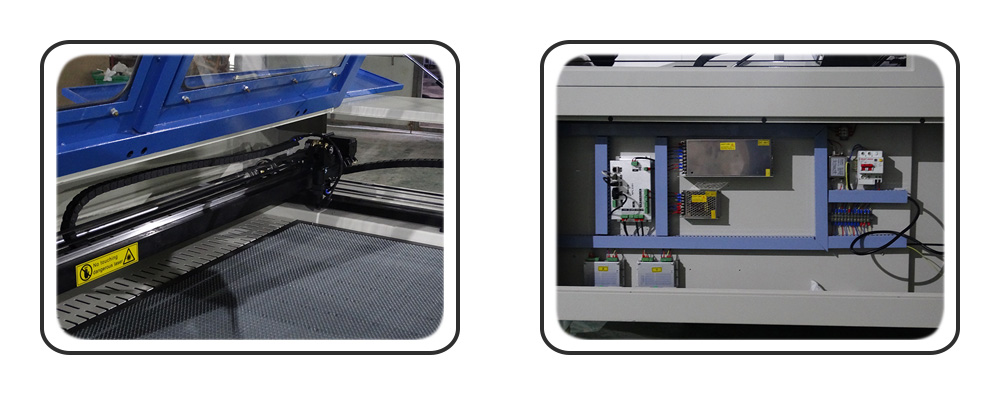

This type co2 laser engraving machine adopts nest table mainly for

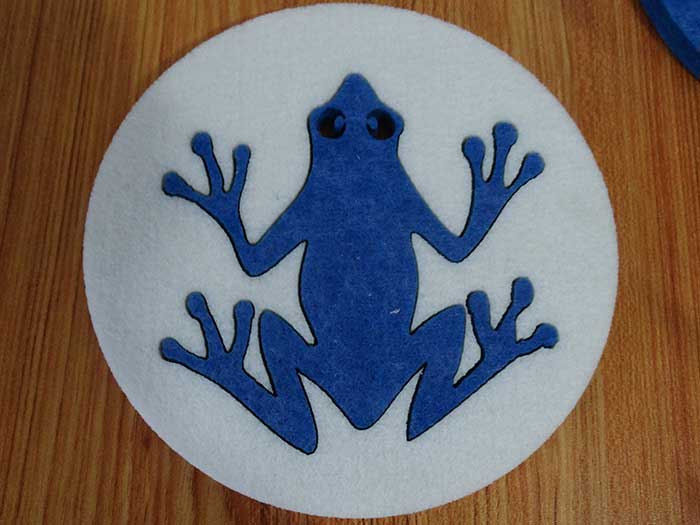

cutting soft-materials like cloth, leather, paper etc. It's could

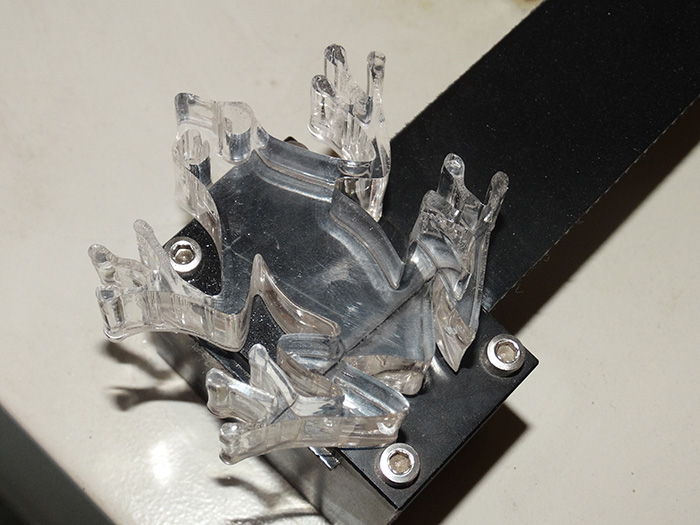

also cutting acrylic etc hard materials.
| Model | DHCL-1610 |
| Lens and Mirrors | Singapore Wavelength lens and mirrors |
| Laser Power | 150W-180W RECI laser tube |
| Working Area | 1600mm * 1000mm |
| Control System | Leetro Control system |
| Motor and Driver | Leadshine stepper motor and driver |
| Table Type | Nest table |
| Rails | PMI square rail |
| Transmission | Belt transmission |
| Cooling System | Water chiller CW 5200 |
| Others | USB offline, Red point, Industrial, Air pump ACO-009 etc |
Features
1. The blade table is suitable for hard materials engraving, it could bear high weight
materials, made by stainless steel table with the bottom 15mm;
2. Welded machine body
adopts thermal quenching technology to remove stress and uses a
large precision gantry milling machine to ensure accuracy;
3. Singapore imported lens and mirrors anti-reflection film, high-quality processing technology, high
transmittance, stable performance;
4. Leetro DSP laser cutting control system
the hardware supports up to 4-axis motion control and 2 independent
laser controls;
Supports T-type and S-speed two control modes, the machine runs
more smoothly;
Network communication can achieve wireless control and is more
convenient;
5. Red Point
The red spot positioning lamp adopts imported laser diode and
optical lens. Clear spot, low divergence, good collimation, small
size, strong industrial applicability;
6. Inner part with optimized heat dissipation effect, rationalized placement of the
electronic parts, Ensured system stability and anti jamming
capability;
7. Non-metal laser head, More in line with the latest design of mechanical engineering,
greatly improve the laser conversion rate, fast carving speed, safe
and durable, easy to operate;
8. Cooling machine adopted Industrial water chiller CW-3000, install easier and could
make sure better cooling system to extended working hours;
9. Leadshine stepper motor and driver, the CM series is a high-performance, lower-cost stepper motor
made by Raytheon Smart with the latest Japanese design, the latest
technology and imported core materials;
10. Reci laser tube, has good engraving performance, can use 4mA current in the
high-frequency pulse engraving of the laser tube in pre-ionization
state.
