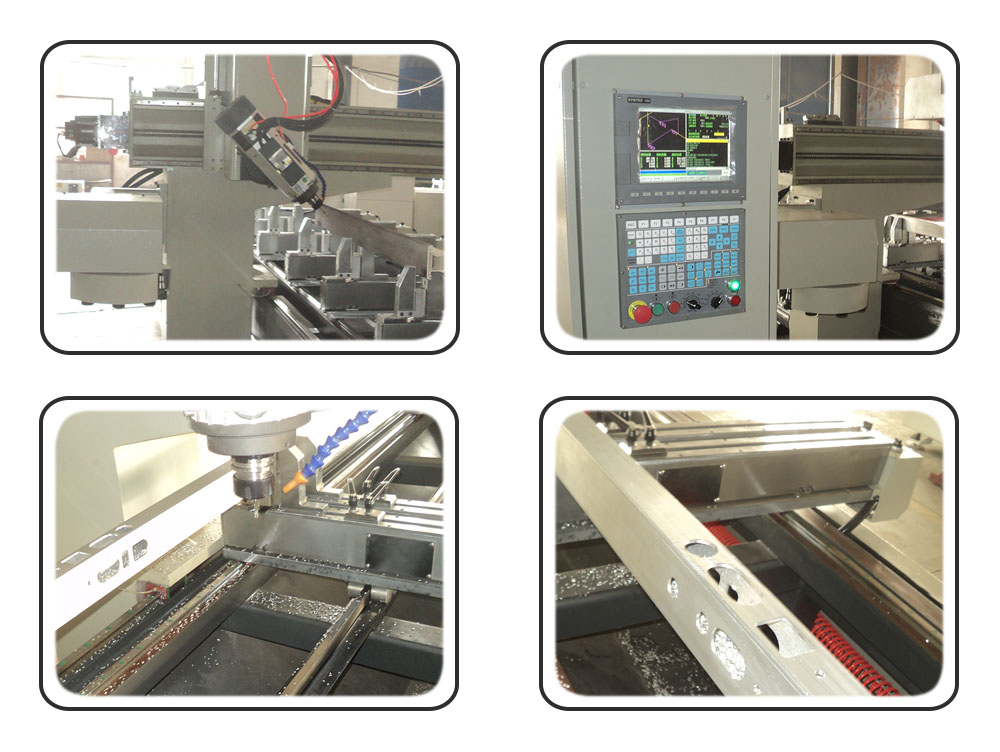

Single Arm 4 Axis CNC Milling Machine For Caring Drilling Holes On Square Cylinder

This type Single Arm 4 axis CNC Router could deal with square cylinder, and drilling holes on side.

Advantage:

1. This machine is suitable for processing a wide range of complex products with a wide range of functions, including boring, drilling, cutting, side milling, sawing, engraving etc;
2. When double-station processing can be realized and the machine performs one-position operation, the second station can perform loading and unloading operations at the same time, without completion time, greatly improving work efficiency and productivity;
3. Bucket automatic tool change system, the tool magazine has 8 capacities, and the tool change time is only 8 seconds;
4. Vacuum adsorption can be used for full-page adsorption or point-to-point adsorption. The whole plate processing can be cut on the line without cutting, and the loading and unloading is convenient and fast, and the auxiliary time is shortened.

Heavy duty body

Heavy duty body are made by 15 mm steel square tube and beam, adopt welded with seamless welded structure. Annealing in high temperature and vibrating stress relief. The body with big weight, could keep good stability without deformation in long time working vibration.

Hiwin Square Rail

We choose square rail for our cnc router. Bucause compare with round rail, square rail could bear qaual force in all directions, could ensure the accuracy and strength of the machine. Square rail is more suitable for high-speed move and greatly reduce the drive horsepower the machine required.

We usually adopt Hiwin (from Taiwan) in CNC router machine. It well known as low price and high quality, value for money. It work for more than 3 year without rust.

HSD Air Cooling Spindle

We usually adopt HSD form Italy. It’s world leader brand in the wood, aluminium and plastics engraving industry. The spindle has more advantage in work, well known better quality and long working life-span, good working effect, low ware and 100% declared power etc. All these advantages make it suitable for High-end woodworking engraving machine, like ATC and single arm type. Of course, it is a good choice if you wanna a cnc router with faster working speed in simple engraving operation.

HSD quick-change air-cooled and liquid-cooled motor spindles are world leaders in the machining of wood, aluminium and plastics. The spindles, produced in their thousands, are characterised by their extremely high reliability andthe wide range of powers and operating speeds available.

Mist Cooling system

Mist Cooling System is installed for processing soft metal materials like copper, aluminum etc. It has two function on spindle, controling the temperature of spindle and lubricating the tools. It’s necessary for soft metal producing.

Syntec Control System

Syntec control system usually adopted in high end CNC router for multi function. It could be used in ATC CNC router, single arm CNC router, auto-loading & unloading CNC router, Oscillating knife CNC router etc.

It is afforable, good with after-sales service, and is currently the most complete domestic product line, the most potential for development of professional PC based CNC controller brand.

The operation interface is designed according to human visual sense system, which makes people's visual sense to reach the most comfortable state. Portable hand-held remote control unit greatly facilitates tool setting, test cutting, processing and security.
