FANUC Spindle Motor BT-40-8000RPM KENTURN Cnc Vertical Machining
Center For Zinc Processing
Advantage

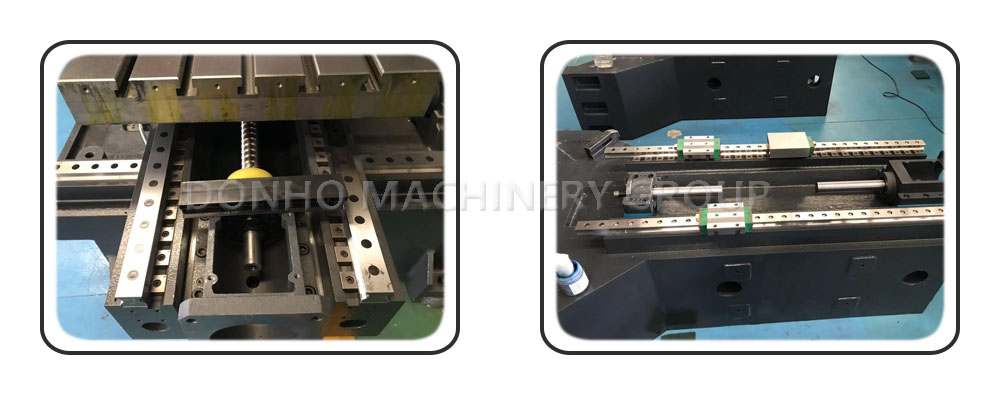

1. Linear guide system for rapid feeds up to 10 m/min;
2. Funnel type 20-station tool changer for quick and precise tool
changes (as Optional);
3. Operating system: Mitsubishi, Fanuc and Siemens;
4. Could mill steel,copper,aluminum,wood and plastic etc;
5. "A" type column has bigger span in base to ensure rigidity and
stability;
6. The operation panel can achieve rotation from 0 to 90 degree,
thus increasing operability. It also enables operators to increase
comfort during work and achieve maximum efficiency;
7. Adopting advanced world famous brand components in pneumatic
parts ,electric parts and operation parts.
Specifications
| Type | unit | DHVMC-850 |
| Travel | X axis travel | mm | 800 |
| Y Axis travel | mm | 500 |
| Vertical travel | mm | 500 |
| Spindle | spindle nose to table surface | mm | 150-650 |
| spidle axis to column surface | mm | 572 |
| Spindle driver | - | Belt transmission |
| Spindle head casing aperture | mm | φ140mm |
| Speed Range | rpm | 10,000 |
| Spindle taper | Type | BT-40 |
| Auto tools change | Maximum tool weight | kg | 8 |
| Maximum tool length | mm | 300 |
| Maximum tool diameter | mm | Φ80(Φ130) |
| Shank | Type | BT-40 |
| Tool magazine capacity | Pieces | 24 |
| Tool exchange method | - | Knife arm |
| Tool exchange time (knife-to-knife) | Sec | 1.8 |
| Rivet | Type | P40-1( 45°) |
| Motor capacity | Controller | | Syntec 22MA |
| Spindle motor (continuous / 15 minutes) | kW | 7.5/11 |
| Servo motor (X/Y/Z) | kW | 2.6/2.6/3.0 |
| Automatic lubrication device | w | 35 |
| Cutting fluid pump | w | 840 |
| battery capacity | kVA | 25 |
| Others | Air source pressure demand | kg/cm | 6 |
| Cutting water tank capacity | L | 250 |
| positioning accuracy | mm | 0.01 |
| Repeatability accuracy | mm | 0.008 |
| Floor area and height | mm | 2550*2250*2400 |
| Machine weight | kg | 5000 |
Machine Details
Series 0i-MODEL F
New functions to help reduce cycle time
FANUC proposes a new method that combines analysis of machining
programs and application of functions suitable for it, in place of
the cycle time reduction methods that have been explored so far.
The Servo Guide is a servo adjustment tool (PC software) that
promotes "visualization" of the machine. This time, a function has
been added to analyze the operation of CNC at the time of
processing program execution. With this function, the operation of
the CNC can also be “visualized”, and it is possible to understand
which part of the machining program is taking time. Based on the
analysis results, it is possible to centrally manage and
collectively set various cycle time reduction functions using the
newly developed processing time reduction setting screen.
Furthermore, the smart overlap function that optimizes the feed
time and the FSSB high-speed rigid tap function that speeds up the
threading can be added, making it possible to apply the optimum
speed-up method to various machine tools.
FANUC Servo amplifier
Amplifier for driving servo motors and spindle motors;
A stand-alone structure makes it easy to achieve an optimized
combination of amplifiers based on power supply capacity;
High processing performance;
Equipped with intelligent rigid tapping function that is effective
in shortening processing time;
High operating rate;
The product contains 200V and 400V power supply specifications for
customers to choose.
FANUC servo motor
The optimized winding design and high efficiency cooling structure
provide the motor with robust and agile acceleration in high speed
areas.
By increasing the rated power and torque for a short period of
time, the heavy cutting capability in a short time is enhanced,
thereby shortening the acceleration and deceleration time.
The new through-hole model allows for central through-cooling, with
air-cooled and liquid-cooled series.
High mechanical precision and low vibration characteristics for
direct connection to the spindle.
With a maximum power of 200 kW and a maximum torque of 2000 Nm, it
is suitable for large machine tools. The technology of driving
several axes with multiple standard amplifiers to drive one axis
can further address the need for high power.
Through the spindle control technology independently developed by
FANUC, it can output the same S6 rated power as the rated power of
S3.
FANUC Spindle motor
High performance AC spindle motor with excellent basic performance
High processing performance
The optimized winding design and high efficiency cooling structure
provide the motor with robust and agile acceleration in high speed
areas.
By increasing the rated power and torque for a short period of
time, the heavy cutting capability in a short time is enhanced,
thereby shortening the acceleration and deceleration time.
The new through-hole model allows for central through-cooling, with
air-cooled and liquid-cooled series.
High mechanical precision and low vibration characteristics for
direct connection to the spindle.
With a maximum power of 200 kW and a maximum torque of 2000 Nm, it
is suitable for large machine tools. The technology of driving
several axes with multiple standard amplifiers to drive one axis
can further address the need for high power.
Through the spindle control technology independently developed by
FANUC, it can output the same S6 rated power as the rated power of
S3.
Manual Pulse Generator
Manual pulse generator, MPG, electronic handwheel, etc. Used for
zero correction and signal segmentation of CNC machine tools,
printing machines, etc. When the handwheel rotates, the encoder
produces a signal corresponding to the handwheel motion. The
coordinates are selected by the numerical control system and the
coordinates are positioned. The manual pulse generator has an
optical code disc with a shaft on its center, and has a circular
pass and a dark engraved line. After shaking the hand wheel, it is
read by the photoelectric transmitting and receiving device to
obtain two sets of sine wave signals HA, HB, and each. The sine
waves are 90 degrees out of phase. Since the two signals of HA and
HB are 90 degrees apart, the positive or negative pulse can be
given by the A phase before or the B phase. The servo motor is
rotated forward or reverse.
Handwheel open button: When holding the handwheel open button and
then shaking the handwheel, the handwheel will have an effect.
Otherwise, the handwheel will not work.
All buttons and shaft selection switches and override switches are
designed with waterproof structure, dustproof, waterproof and long
service life.
The transmission distance is long, the operation is stable under 40
meters; the cement wall can penetrate 15CM, normal use
With signal strength display, indicating signal connection quality.
The hand-pulsed pulse generator shell is made of high-strength
material with impact resistance, and the shielded woven mesh signal
transmission line is anti-interference and PU skin wear-resistant
and oil-resistant. The encoder uses a non-contact optical detection
structure that has the same accuracy after millions of uses. The
machine is equipped with a magnet and a hook for easy installation
Auto Chip conveyor
The device has the advantages of serialization, generalization and
standardization, simple operation, reliable operation, convenient
disassembly and assembly, and easy maintenance. It can also be used
in conjunction with other chip evacuation devices to form a variety
of cutting arrangements.
1. It can handle all kinds of chips; it can also be used as a
conveying device for small parts of stamping and cold pier machine
tools.
2. High conveying efficiency and large selection range of conveying
speed;
3. The width of the chain plate is diversified, and the structural
form is divided into two types: a seamless chain plate and a seam
chain plate. 4, streamlined shape, beautiful appearance, smooth
chip removal.
4. With overload protection.
