M30 Automatic Power Off System Air Conditioning System Cnc Vertical
Machining Center For Processing Plumbing Fittings
Advantage
1. Three-axis full stroke process: effectively enhance dynamic
accuracy and service life;
2. Taiwan-made line rail: high-precision Taiwan-made three-axis
rail;
3. Y-axis motor rear position: shorten the distance between the
upper and lower workpieces and improve the processing convenience;
4. High-quality castings: The whole machine adopts GB300 high-grade
resin sand castings, which are tempered and vibrated and natural
aging treatment to eliminate internal stress;
5. Sealed sheet metal and excretion inside the multi head drilling
machine;
6. TE series spindle adopts advanced precision grade P4 bearings,
with high rigidity and heavy cutting featuring. The standard speed
is up to 10000 RPM (BT40).
Specifications
| Type | unit | DHVMC-850 |
| Table | Table size | mm | 1000*500 |
| Max. load of worktable | kg | 400 |
| T slot no./width/distance | mm | 18x5x90 |
| Travel | X axis travel | mm | 800 |
| Y Axis travel | mm | 500 |
| Vertical travel | mm | 500 |
| Spindle | spindle nose to table surface | mm | 150-650 |
| spidle axis to column surface | mm | 572 |
| Speed Range | rpm | 10,000 |
| Spindle taper | Type | BT-40 |
| Spindle head casing aperture | mm | φ140mm |
| Spindle driver | - | Belt transmission |
| Auto tools change | Maximum tool diameter | mm | Φ80(Φ130) |
| Maximum tool length | mm | 300 |
| Maximum tool weight | kg | 8 |
| Shank | Type | BT-40 |
| Tool magazine capacity | Pieces | 24 |
| Tool exchange method | - | Knife arm |
| Tool exchange time (knife-to-knife) | Sec | 1.8 |
| Rivet | Type | P40-1( 45°) |
| Motor capacity | Controller | | Syntec 22MA |
| Spindle motor (continuous / 15 minutes) | kW | 7.5/11 |
| Servo motor (X/Y/Z) | kW | 2.6/2.6/3.0 |
| Automatic lubrication device | w | 35 |
| Cutting fluid pump | w | 840 |
| battery capacity | kVA | 25 |
| Others | Air source pressure demand | kg/cm | 6 |
| Cutting water tank capacity | L | 250 |
| positioning accuracy | mm | 0.01 |
| Repeatability accuracy | mm | 0.008 |
| Floor area and height | mm | 2550*2250*2400 |
| Machine weight | kg | 5000 |

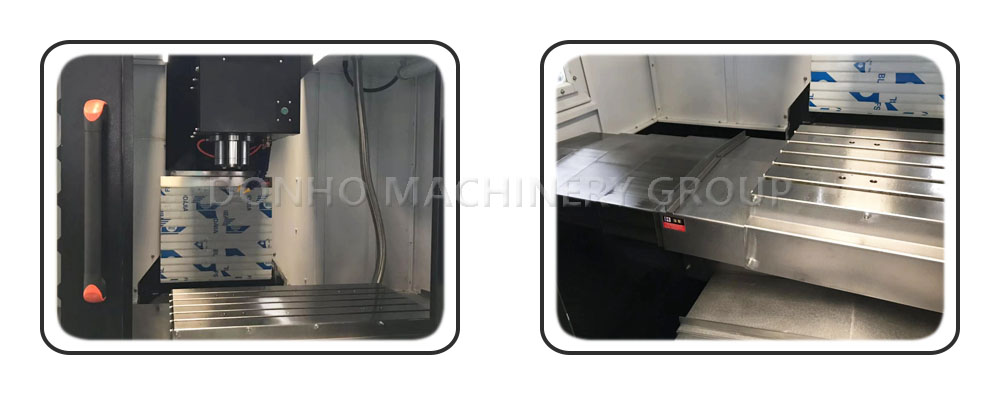

Machine Details
Series 0i-MODEL F
FANUC proposes a new method that combines analysis of machining
programs and application of functions suitable for it, in place of
the cycle time reduction methods that have been explored so far.
The Servo Guide is a servo adjustment tool (PC software) that
promotes "visualization" of the machine. This time, a function has
been added to analyze the operation of CNC at the time of
processing program execution. With this function, the operation of
the CNC can also be “visualized”, and it is possible to understand
which part of the machining program is taking time. Based on the
analysis results, it is possible to centrally manage and
collectively set various cycle time reduction functions using the
newly developed processing time reduction setting screen.
Furthermore, the smart overlap function that optimizes the feed
time and the FSSB high-speed rigid tap function that speeds up the
threading can be added, making it possible to apply the optimum
speed-up method to various machine tools.
FANUC Servo amplifier
Amplifier for driving servo motors and spindle motors;
A stand-alone structure makes it easy to achieve an optimized
combination of amplifiers based on power supply capacity;
High processing performance;
Equipped with intelligent rigid tapping function that is effective
in shortening processing time;
High operating rate;
The product contains 200V and 400V power supply specifications for
customers to choose.
Fully enclosed tool magazine
the processing environment is noisy and it is not easy to enter the
iron filings. Guarantee the service life of the tool magazine,
reduce tool change failure, extend the service life of the spindle,
and ensure the precision of machining.
Hiwin rail
Due to the rolling friction method, when the linear guide is used
as the linear guide, not only the friction coefficient is reduced
to 1/50 of the sliding guide, but also the difference between the
dynamic friction and the static friction is small. Therefore, when
the bed is running, there is no slippage, the positioning accuracy
of μm can be achieved, and the machine can maintain the accuracy
for a long time. The power loss of the machine can be significantly
reduced, and the heat generated by the friction is small, which is
suitable for high-speed operation. The special beam structure
design can bear the load in the up, down, left and right directions
at the same time. Easy to assemble, it maintains accuracy and is
interchangeable, allowing you to replace sliders or rails or even
linear guide sets. The lubrication structure is simple and easy to
oil.
Manual Pulse Generator
Manual pulse generator, MPG, electronic handwheel, etc. Used for
zero correction and signal segmentation of CNC machine tools,
printing machines, etc. When the handwheel rotates, the encoder
produces a signal corresponding to the handwheel motion. The
coordinates are selected by the numerical control system and the
coordinates are positioned. The manual pulse generator has an
optical code disc with a shaft on its center, and has a circular
pass and a dark engraved line. After shaking the hand wheel, it is
read by the photoelectric transmitting and receiving device to
obtain two sets of sine wave signals HA, HB, and each. The sine
waves are 90 degrees out of phase. Since the two signals of HA and
HB are 90 degrees apart, the positive or negative pulse can be
given by the A phase before or the B phase. The servo motor is
rotated forward or reverse.
The hand wheel adopts imported encoder, which has good hand
feeling, long service life and clear tooth position.
With LCD display X-axis, Y-axis, Z-axis, 4-axis coordinate values,
resolution 1 micron
With magnification display 1X, 10X, 100X; with axis selection
display X, Y, Z, 4
Hand pulse generator has power on/off key, forward, reverse,
continuous, display clear four buttons, handwheel enable button,
handwheel open button
Handwheel open button: When holding the handwheel open button and
then shaking the handwheel, the handwheel will have an effect.
Otherwise, the handwheel will not work.
All buttons and shaft selection switches and override switches are
designed with waterproof structure, dustproof, waterproof and long
service life.
The transmission distance is long, the operation is stable under 40
meters; the cement wall can penetrate 15CM, normal use
With signal strength display, indicating signal connection quality.
The hand-pulsed pulse generator shell is made of high-strength
material with impact resistance, and the shielded woven mesh signal
transmission line is anti-interference and PU skin wear-resistant
and oil-resistant. The encoder uses a non-contact optical detection
structure that has the same accuracy after millions of uses. The
machine is equipped with a magnet and a hook for easy installation
Auto Chip conveyor
The device has the advantages of serialization, generalization and
standardization, simple operation, reliable operation, convenient
disassembly and assembly, and easy maintenance. It can also be used
in conjunction with other chip evacuation devices to form a variety
of cutting arrangements.
1. It can handle all kinds of chips; it can also be used as a
conveying device for small parts of stamping and cold pier machine
tools.
2. High conveying efficiency and large selection range of conveying
speed;
3. The width of the chain plate is diversified, and the structural
form is divided into two types: a seamless chain plate and a seam
chain plate. 4, streamlined shape, beautiful appearance, smooth
chip removal.
4. With overload protection.
